Automating Repetitive GUI Interactions in Embedded Development with Spix

19 February 2026

The Problem: Click Fatigue in GUI Testing

Imagine this:

You start your application.
The login screen appears.
You enter your username and password.
You click "Login".
Only then do you finally reach the UI where you can verify whether your code changes worked.

This is fine the first few times - but if you’re doing it 100+ times a day, it becomes a serious bottleneck. While features like hot reload can help in some cases, they aren’t always applicable - especially when structural changes are involved or when you must work with "real" production data.

So, what’s the alternative?

The Solution: Automating GUI Input with Spix

Spix allows you to control your Qt/QML applications programmatically. Using scripts (typically Python), you can automatically:

Insert text into input fields
Click buttons
Wait for UI elements to appear
Take and compare screenshots

This means you can automate login steps, set up UI states consistently, and even extend your CI pipeline with visual testing. Unlike manual hot reload tweaks or hardcoding start screens, Spix provides an external, scriptable solution without altering your application logic.

Setting up Spix in Your Project

Getting Spix integrated requires a few straightforward steps:

1. Add Spix as a dependency

Typically done via a Git submodule into your project’s third-party folder.

git subrepo add 3rdparty/spix git@github.com:faaxm/spix.git

2. Register Spix in CMake

Update your CMakeLists.txt with a find_package(Spix REQUIRED) call.
Because of CMake quirks, you may also need to manually specify the path to Spix’s CMake modules.

LIST(APPEND CMAKE_MODULE_PATH /home/christoph/KDAB/spix/cmake/modules)
find_package(Spix REQUIRED)

3. Link against Spix

Add Spix to your target_link_libraries call.

target_link_libraries(myApp
  PRIVATE Qt6::Core
          Qt6::Quick
          Qt6::SerialPort
          Spix::Spix
)

4. Initialize Spix in your application

Include Spix headers in main.cpp.
Add some lines of boilerplate code:
- Include the 2 Spix Headers (AnyRPCServer for Communication and QtQmlBot)
- Start the Spix RPC server.
- Create a Spix::QtQmlBot.
- Run the test server on a specified port (e.g. 9000).

#include <Spix/AnyRpcServer.h>
#include <Spix/QtQmlBot.h>
[...]

//Start the actual Runner/Server
spix::AnyRpcServer server;
auto bot = new spix::QtQmlBot();
bot->runTestServer(server);

At this point, your application is "Spix-enabled". You can verify this by checking for the open port (e.g. localhost:9000).

Spix can be a Security Risk: Make sure to not expose Spix in any production environment, maybe only enable it for your Debug-builds.

Where Spix Shines

Once the setup is done, Spix can be used to automate repetitive tasks. Let’s look at two particularly useful examples:

1. Automating Logins with a Python Script

Instead of typing your credentials and clicking "Login" manually, you can write a simple Python script that:

Connects to the Spix server on localhost:9000
Inputs text into the userField and passwordField
Clicks the "Login" button (Items marked with "Quotes" are literal That-Specific-Text-Identifiers for Spix)

import xmlrpc.client

session = xmlrpc.client.ServerProxy('http://localhost:9000')

session.inputText('mainWindow/userField', 'christoph')
session.inputText('mainWindow/passwordField', 'secret')
session.mouseClick('mainWindow/"Login"')

When executed, this script takes care of the entire login flow - no typing, no clicking, no wasted time. Better yet, you can check the script into your repository, so your whole team can reuse it.

For Development, Integration in Qt-Creator can be achieved with a Custom startup executable, that also starts this python script.

In a CI environment, this approach is particularly powerful, since you can ensure every test run starts from a clean state without relying on manual navigation.

2. Screenshot Comparison

Beyond input automation, Spix also supports taking screenshots. Combined with Python libraries like OpenCV or scikit-image, this opens up interesting possibilities for testing.

Example 1: Full-screen comparison

Take a screenshot of the main window and store it first:

import xmlrpc.client

session = xmlrpc.client.ServerProxy('http://localhost:9000')

[...]
session.takeScreenshot('mainWindow', '/tmp/screenshot.png')k

Now we can compare it with a reference image:

from skimage import io
from skimage.metrics import structural_similarity as ssim

screenshot1 = io.imread('/tmp/reference.png', as_gray=True)
screenshot2 = io.imread('/tmp/screenshot.png', as_gray=True)

ssim_index = ssim(screenshot1, screenshot2, data_range=screenshot1.max() - screenshot1.min())

threshold = 0.95

if ssim_index == 1.0:
    print("The screenshots are a perfect match")
elif ssim_index >= threshold:
    print("The screenshots are similar, similarity: " + str(ssim_index * 100) + "%")
else:
    print("The screenshots are not similar at all, similarity: " + str(ssim_index * 100) + "%")

This is useful for catching unexpected regressions in visual layout.

Example 2: Finding differences in the same UI

Use OpenCV to highlight pixel-level differences between two screenshots—for instance, missing or misaligned elements:

import cv2

image1 = cv2.imread('/tmp/reference.png')
image2 = cv2.imread('/tmp/screenshot.png')

diff = cv2.absdiff(image1, image2)

# Convert the difference image to grayscale
gray = cv2.cvtColor(diff, cv2.COLOR_BGR2GRAY)

# Threshold the grayscale image to get a binary image
_, thresh = cv2.threshold(gray, 30, 255, cv2.THRESH_BINARY)

contours, _ = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
cv2.drawContours(image1, contours, -1, (0, 0, 255), 2)

cv2.imshow('Difference Image', image1)
cv2.waitKey(0)

This form of visual regression testing can be integrated into your CI system. If the UI changes unintentionally, Spix can detect it and trigger an alert.

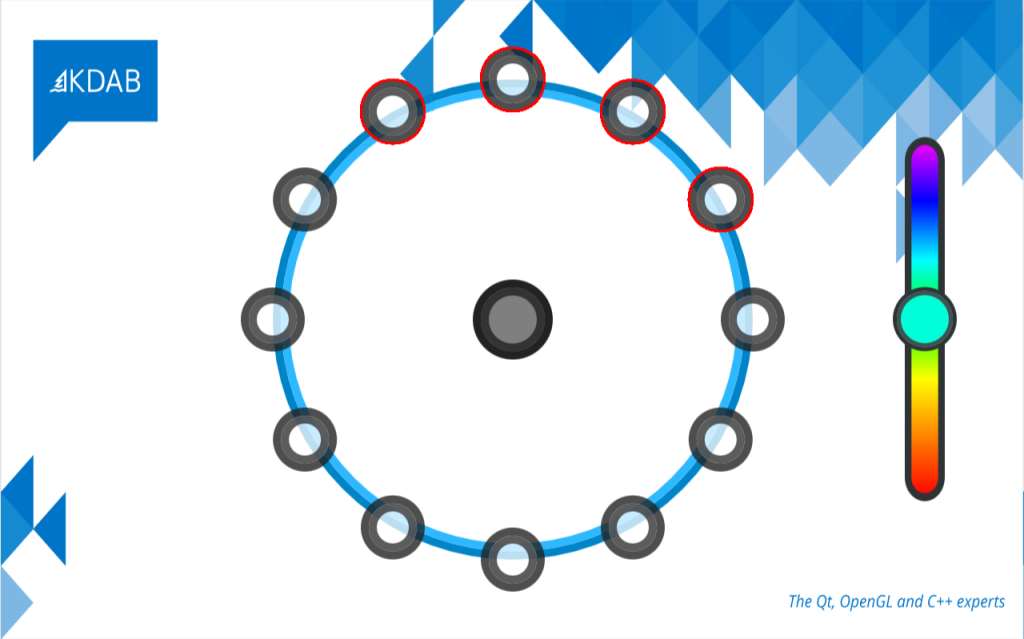

Defective Image

The script marked the defective parts of the image compared to the should-be image.

Recap

Spix is not a full-blown GUI testing framework like Squish, but it fills a useful niche for embedded developers who want to:

Save time on repetitive input (like logins).
Share reproducible setup scripts with colleagues.
Perform lightweight visual regression testing in CI.
Interact with their applications on embedded devices remotely.

While there are limitations (e.g. manual wait times, lack of deep synchronization with UI states), Spix provides a powerful and flexible way to automate everyday development tasks - without having to alter your application logic.

If you’re tired of clicking the same buttons all day, give Spix a try. It might just save you hours of time and frustration in your embedded development workflow.
